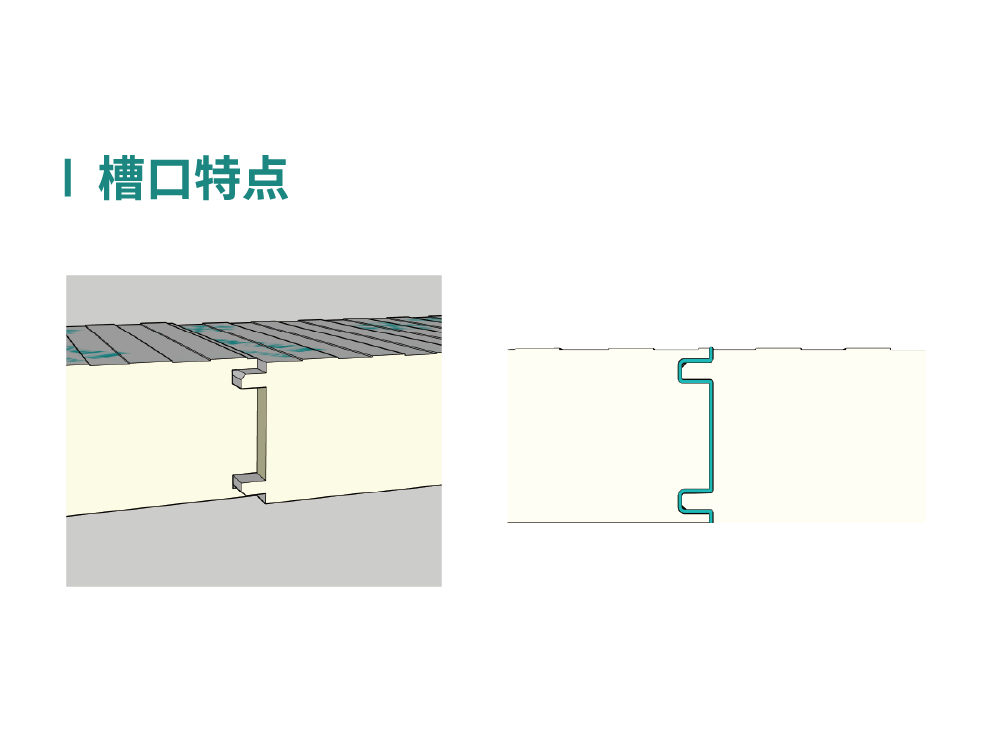

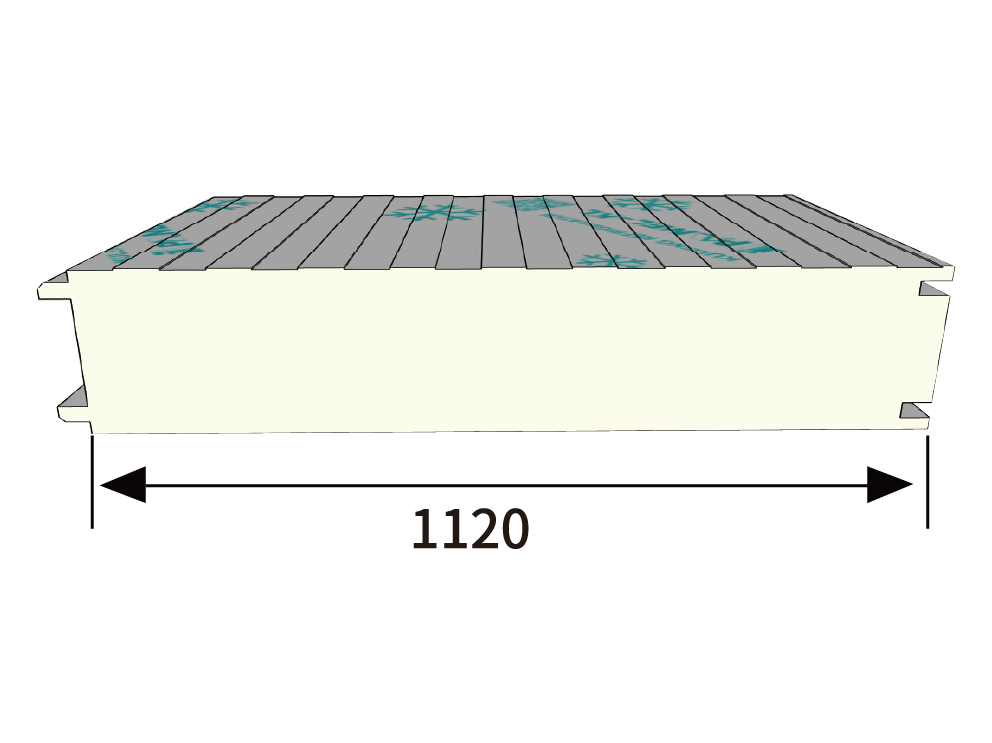

The Norma style shaped notch provides a very good sealing effect for the panel. The panel wrapping notch makes the groove shape less prone to damage, deformation, and detachment, while increasing the bending strength.
Core Material
PIR (polyisocyanurate) or PUR (polyurethane) insulated sandwich panel core, with steel facer, engineered for cold storage and refrigerated warehouse construction.
Product Performance Table

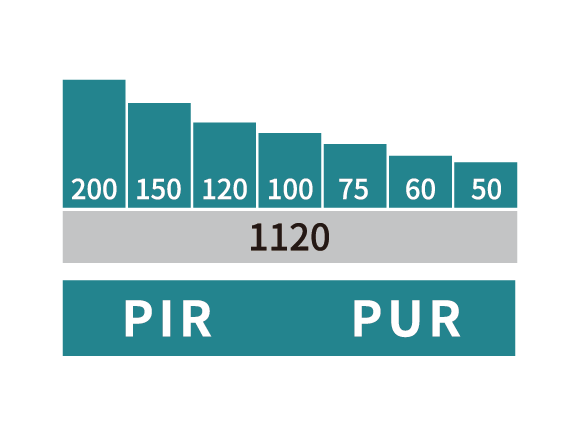

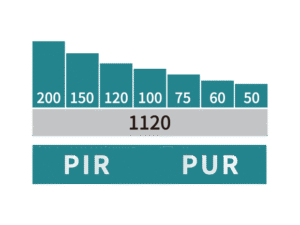

| Thickness (mm) | 50 | 75 | 100 | 120 | 150 | 200 |
| Temperature Difference (°C) | 25 | 30 | 40 | 45 | 50 | 65 |
| Wall Height (m) | 3 | 3.2 | 3.8 | 4.0 | 4.2 | 4.95 |
| Ceiling Length (m) | 2.5 | 3 | 3.5 | 3.8 | 4 | 4.5 |
| U Value PIR/PUR (W/m2K) | 0.4/0.45 | 0.267/0.3 | 0.2/0.23 | 0.167/0.192 | 0.133/0.15 | 0.1/0.113 |
| Weight PIR/PUR (Kg/m2) | 10.3/9.8 | 11.55/10.8 | 12.8/11.8 | 15.2/14.2 | 15.3/13.8 | 17.8/15.8 |
