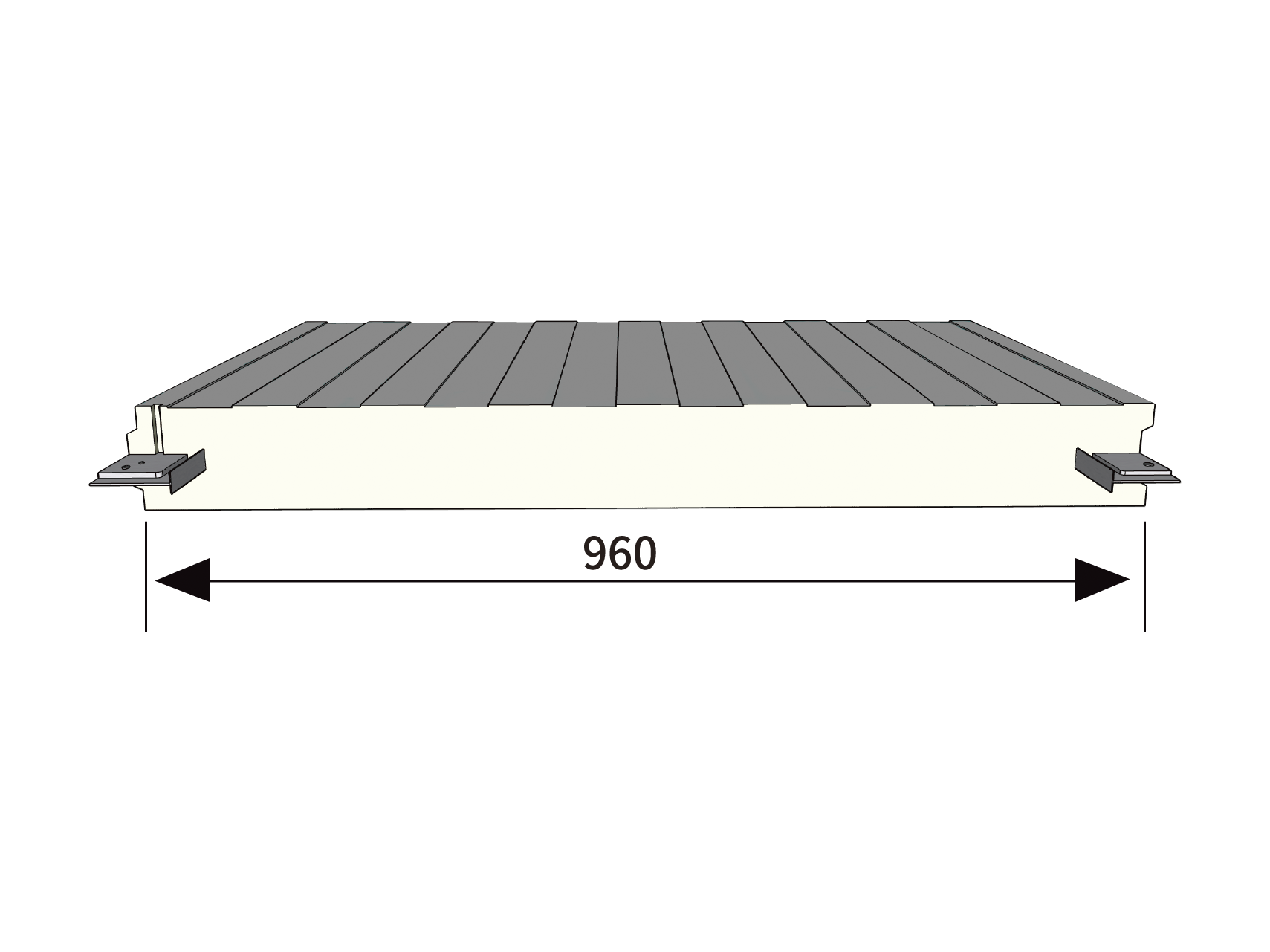

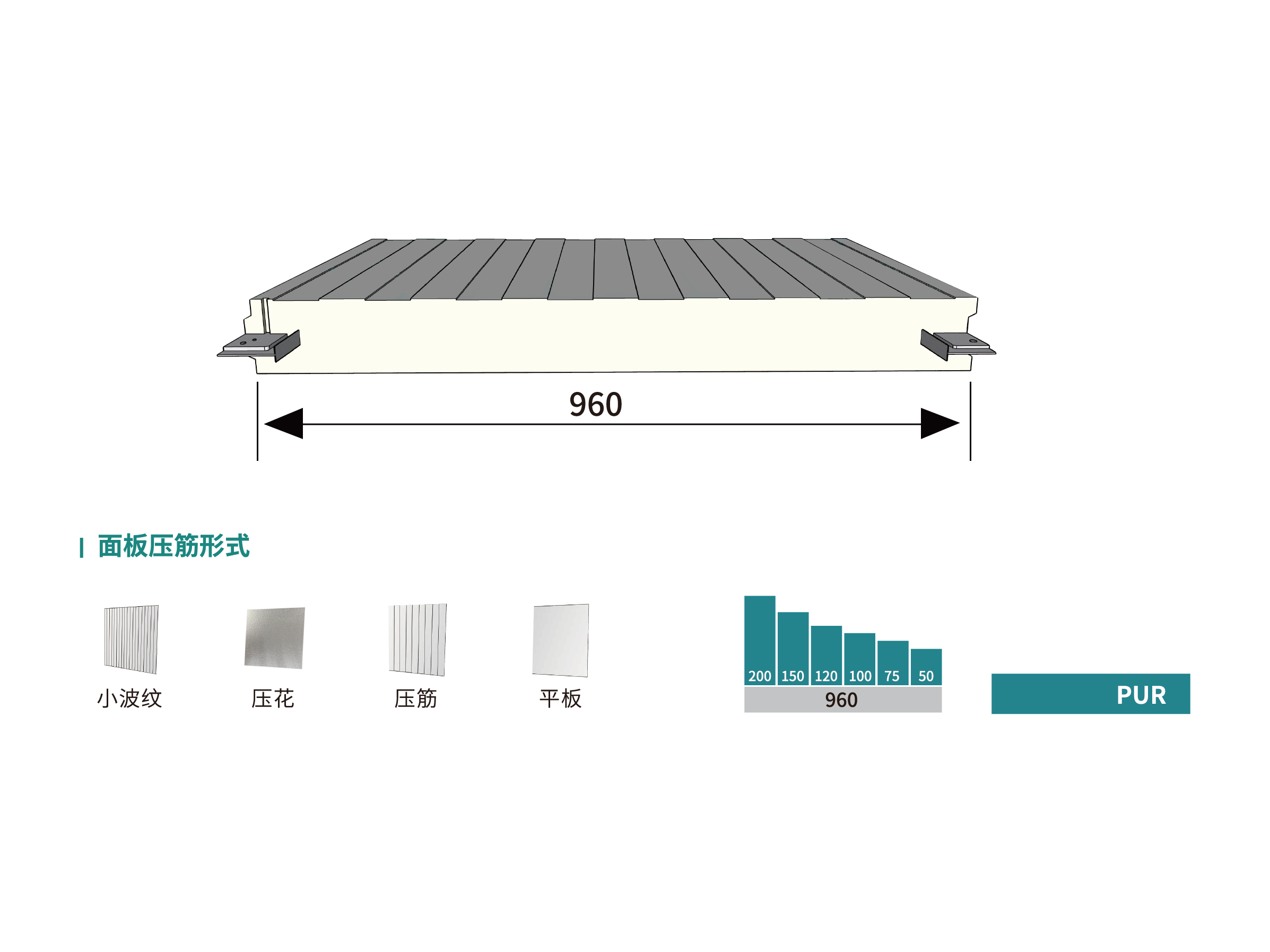

Cam-lock connection makes the installation of cold storage panels convenient, suitable for the construction of small-sized cold storage.
Core Material
PIR (polyisocyanurate) or PUR (polyurethane) insulated sandwich panel core, with steel facer, engineered for cold storage and refrigerated warehouse construction.
Product Performance Table
| Thickness (mm) | 50 | 75 | 100 | 120 | 150 | 200 |
| Temperature Difference (°C) | 25 | 30 | 40 | 45 | 50 | 65 |
| Wall Height (m) | 3 | 3.2 | 3.8 | 4.0 | 4.2 | 4.95 |
| Ceiling Length (m) | 2.5 | 3 | 3.5 | 3.8 | 4 | 4.5 |
| U Value PIR/PUR (W/m2K) | 0.4/0.45 | 0.267/0.3 | 0.2/0.23 | 0.167/0.192 | 0.133/0.15 | 0.1/0.113 |
| Weight PIR/PUR (Kg/m2) | 10.3/9.8 | 11.55/10.8 | 12.8/11.8 | 15.2/14.2 | 15.3/13.8 | 17.8/15.8 |
