Cleanroom doors are critical components in controlled environments, providing airtight separation and maintaining the required cleanliness levels. They are designed to minimize particle generation, prevent air leakage, and withstand frequent sanitization.
At Jiangsu Yanxin, we provide various type of cleanroom door which ranges from swing door to air tight fast door.
Below is an introduction to their applications and main categories, with examples from key industries：
- Photovoltaic (Solar) Industry
In solar panel manufacturing, cleanroom doors help maintain a particle-free environment during processes such as wafer cutting, cell assembly, and lamination. They prevent dust contamination that can reduce photovoltaic efficiency. - Pharmaceutical Industry
Pharmaceutical production demands strict compliance with GMP and FDA standards. Cleanroom doors ensure sterile conditions in areas like sterile filling, formulation rooms, and laboratories. Doors often feature smooth, easy-to-disinfect surfaces and options such as interlocking systems to maintain pressure differentials. - Electronics Industry
From semiconductor fabrication to LCD and battery production, cleanroom doors provide ESD-safe (anti-static) designs and excellent sealing to protect sensitive electronic components from micro-particles and static discharge. - Food Industry
In food processing, cleanroom doors help control temperature, humidity, and hygiene levels to prevent cross-contamination. Stainless steel or PVC surfaces with antibacterial coatings are common to meet food-grade sanitation requirements.

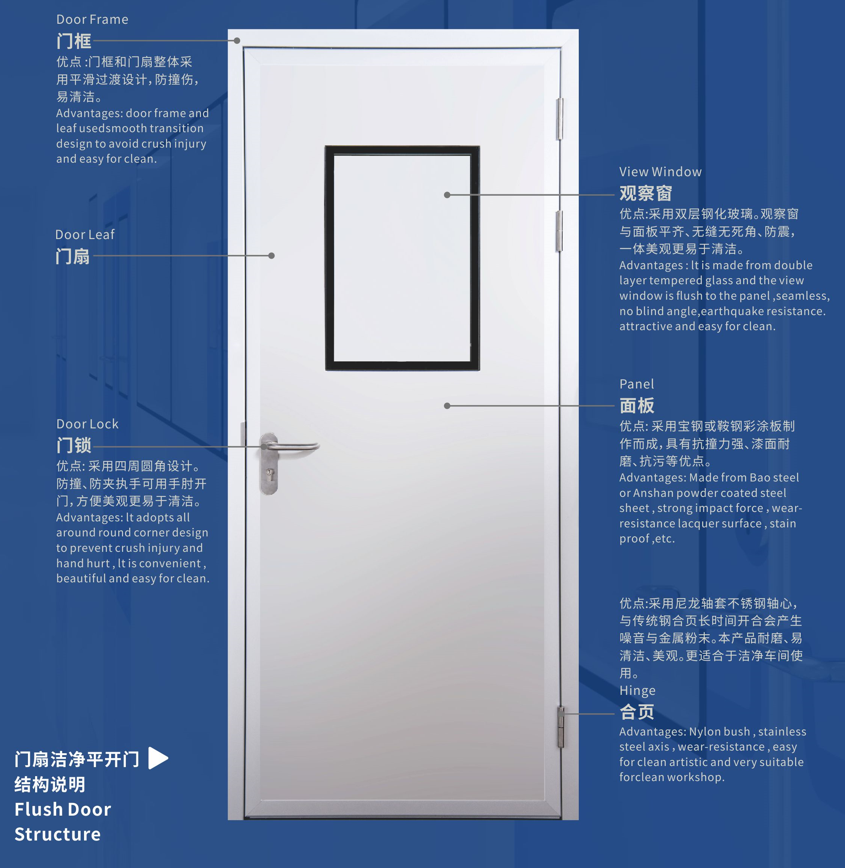

Cleanroom Door Structure Overview
Cleanroom doors are engineered to provide excellent sealing performance, smooth surfaces, and long-term durability. Their structure typically includes the following key components:
- Door Leaf (Panel)
- Door Frame
- Sealing System
- Vision Panel (Optional)
- Hardware & Accessories
- Optional Features
A cleanroom door combines a robust insulated core, a seamless hygienic surface, precision gaskets, and cleanroom-grade hardware to maintain pressure, reduce particle shedding, and withstand frequent disinfection. This engineered structure ensures compliance with ISO and GMP standards across industries such as pharmaceuticals, electronics, photovoltaics, and food processing.
PRODUCT

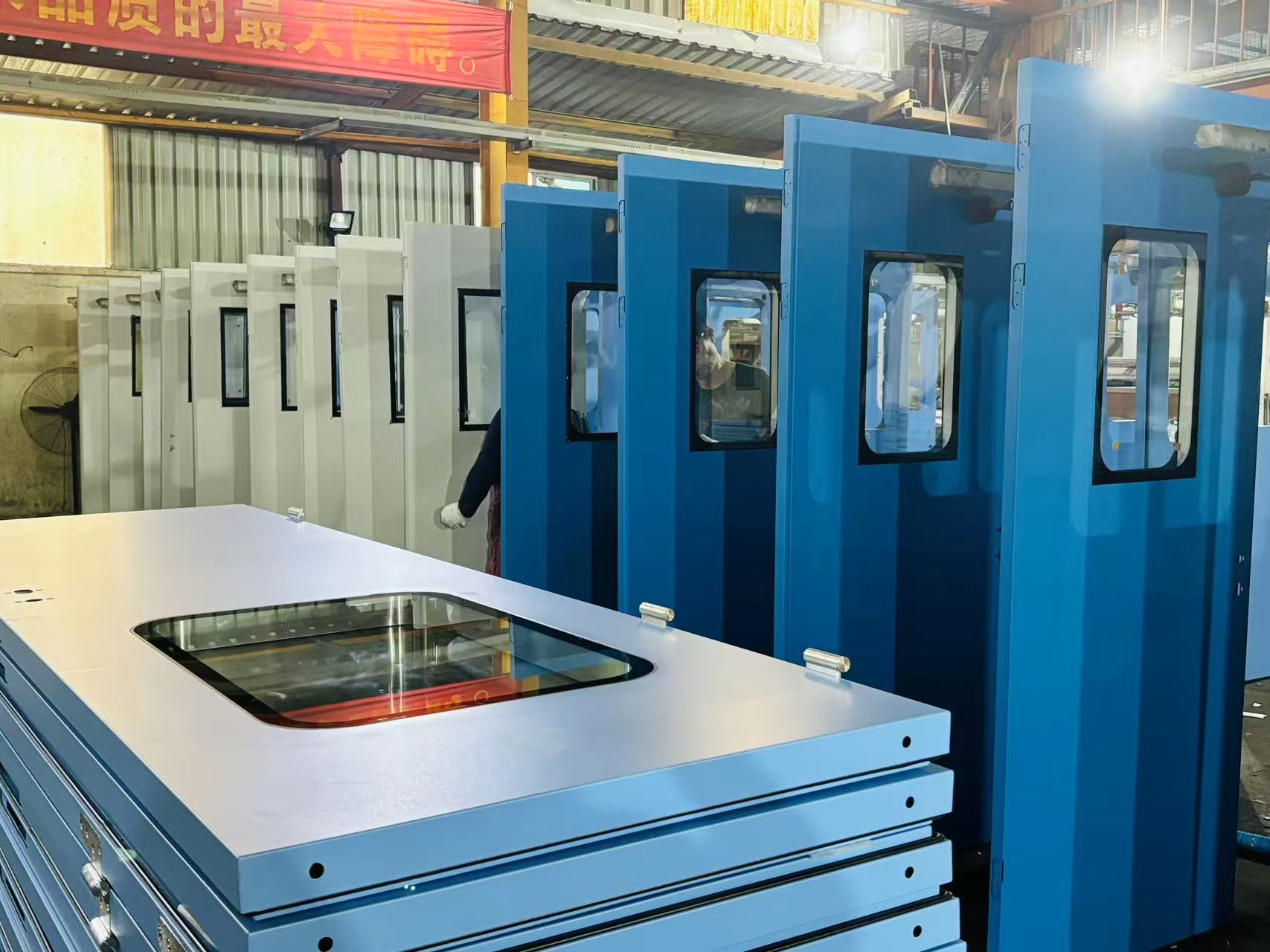

1.Steel Door with Clip Type Connection/Steel Door with Shape Connection
Steel Door with Shape Connection
Designed with interlocking profiles, this door provides a strong, airtight, and durable connection. It is perfect for laboratories, controlled production areas, or environments requiring high structural integrity and sealing performance.
Single Door: 900mm*2100mm

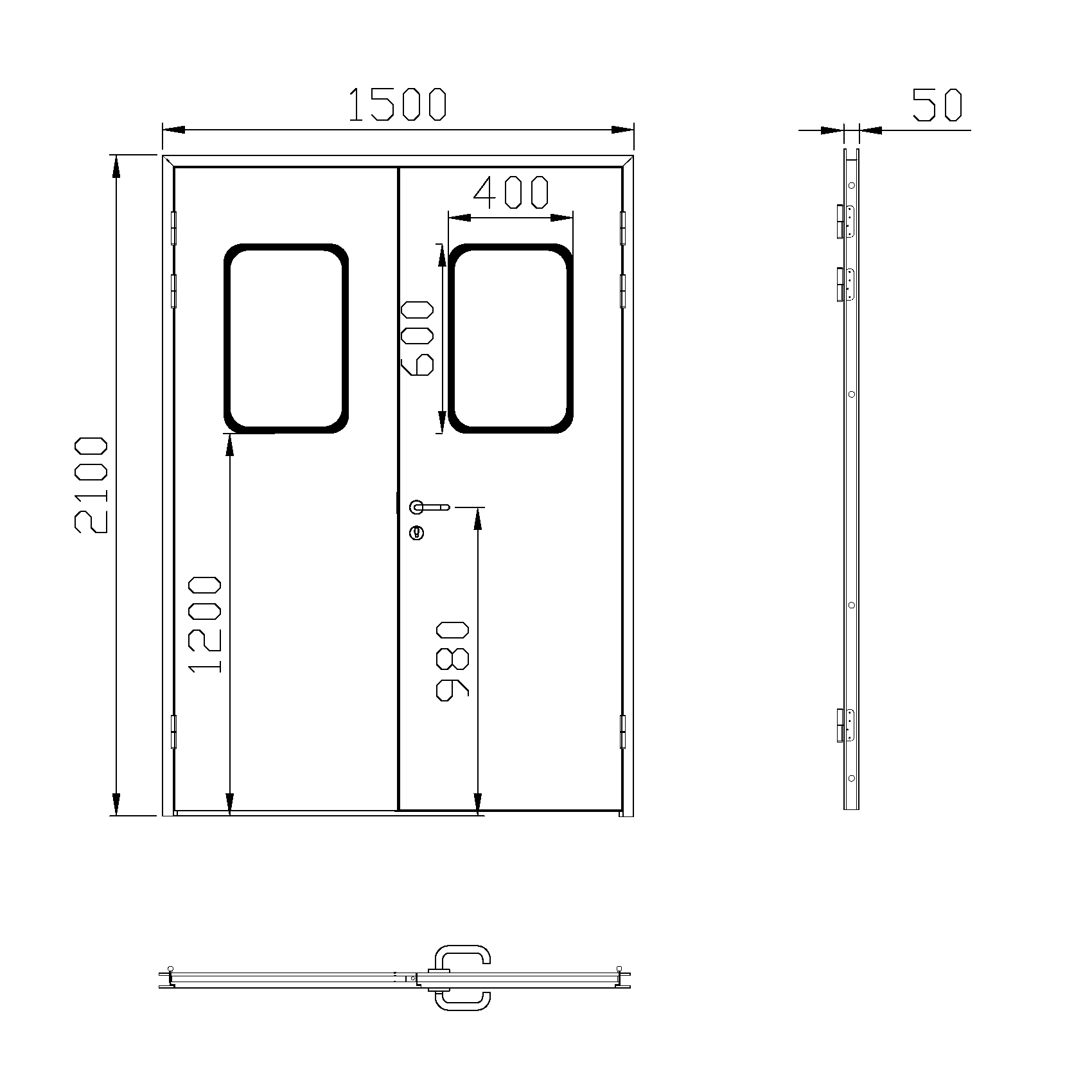

Double Door: 1500mm*2100mm, 1800mm*2100mm
Color: Customized
Filler: Aluminum / Paper Honeycomb, Rock Wool
Surface: 304 stainless steel
Window: Double Rectangular Sealed Glass
Hinge: L-shaped Hinge
Door Leaf Thickness: 50mm
Steel Door with Clip Type Connection
This door features a convenient clip system for fast and flexible installation. Panels can be easily attached, removed, or replaced, making it ideal for modular cleanrooms or industrial areas where quick access and adjustments are needed.
Feature | Clip Type Connection | Shape Connection |
Connection Method | Fastened with clips | Interlocking shapes/profiles |
Installation | Faster, easier to assemble and disassemble | Requires precise alignment, slower installation |
Maintenance | Panels can be easily removed or replaced | Panels are more permanent; harder to replace individually |
Strength & Sealing | Moderate strength; sealing depends on clip tightness | High structural strength; better airtightness and durability |
Typical Applications | Modular cleanrooms, industrial doors needing frequent access | Laboratories, controlled production areas, high-security environments |

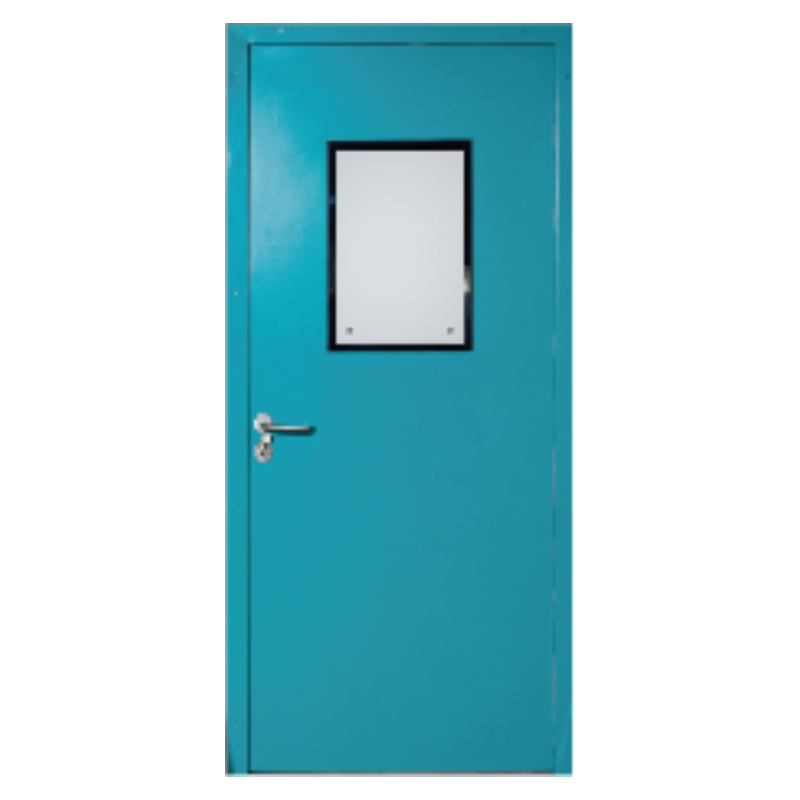

2.Stainless Door
A Stainless Steel Door is engineered for environments that demand superior corrosion resistance, hygiene, and long-term durability. Constructed from high-quality 304 stainless steel plate, it combines an elegant appearance with exceptional performance, Its ability to endure long-term service in harsh salt spray or acidic environments makes it an excellent choice for cleanrooms and other demanding industrial settings.

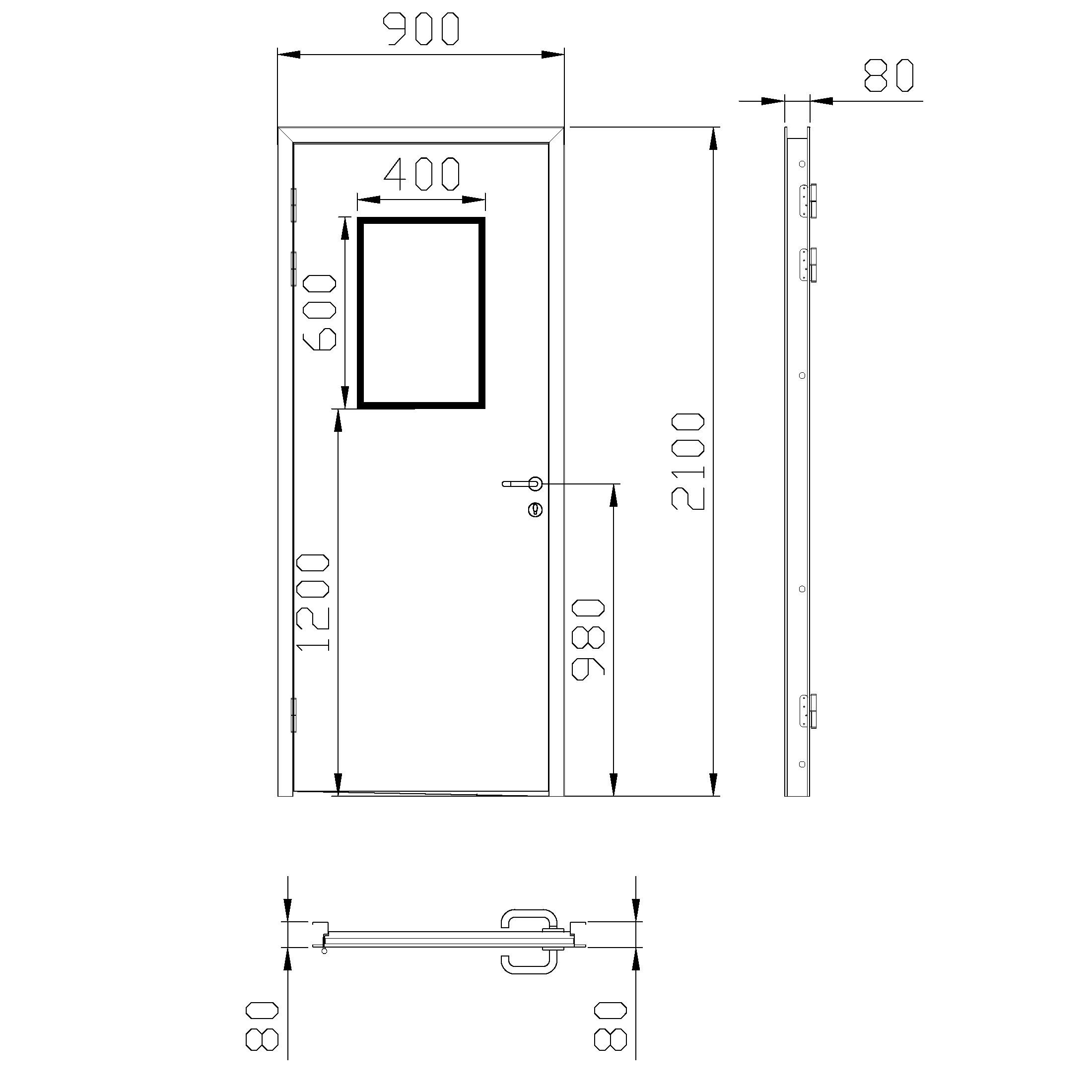

Single Door: 900mm*2100mm
Double Door: 1500mm*2100mm, 1800mm*2100mm
Color: Customized
Filler: Aluminum / Paper Honeycomb, Rock Wool
Surface: 304 stainless steel
Window: 400mm*600mm
Hinge: L-shaped Hinge
Door Leaf Thickness: 50mm

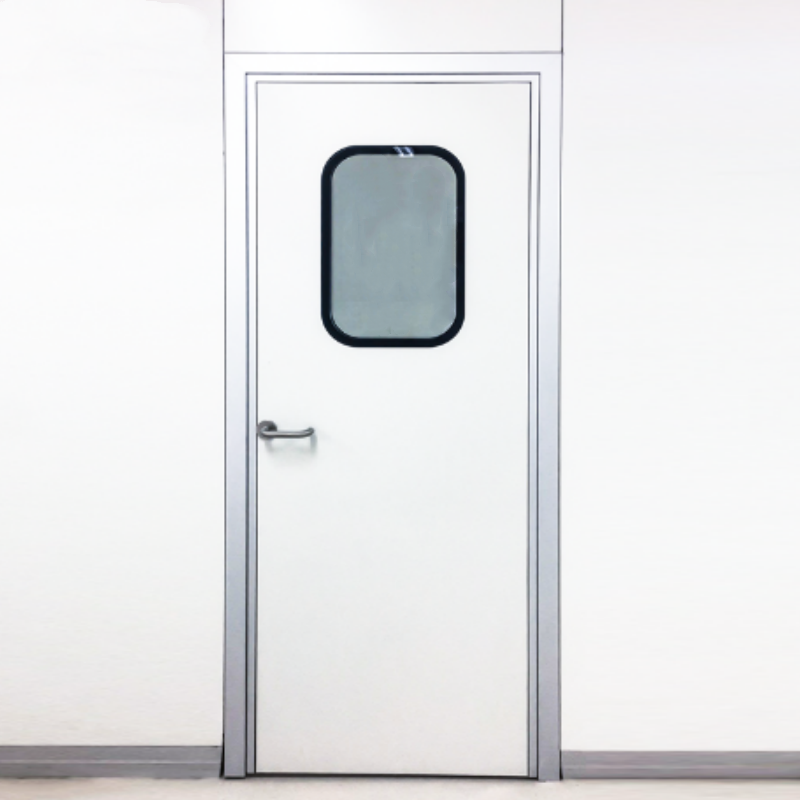

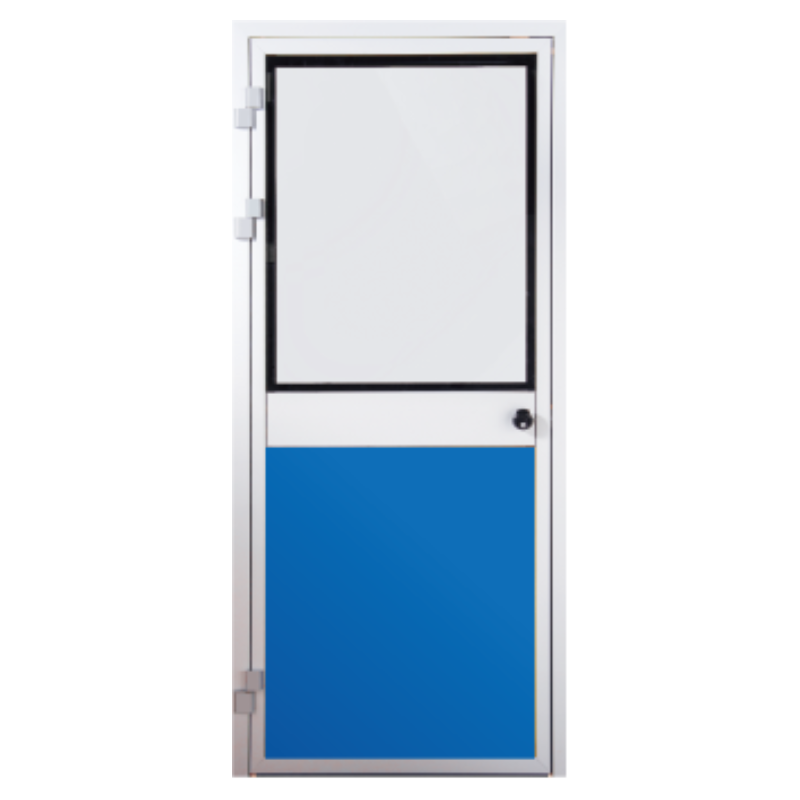

3.Aluminum Frame Door
The Aluminum Frame Door combines a high-strength aluminum alloy frame with a color steel plate door leaf for a smooth, dust-free, and easy-to-clean surface. Its lightweight yet durable design makes it ideal for cleanroom applications in pharmaceuticals, electronics, food processing, and other industries requiring superior cleanliness and aesthetics.
Single Door: 900mm*2100mm
Double Door: 1500mm*2100mm, 1800mm*2100mm
Color: Customized
Filler: Aluminum / Paper Honeycomb, Rock Wool
Sealing Means: Sealing Strip Around Door
Window: 400mm*600mm
Hinge: L-shaped Hinge
Door Leaf Thickness: 50mm

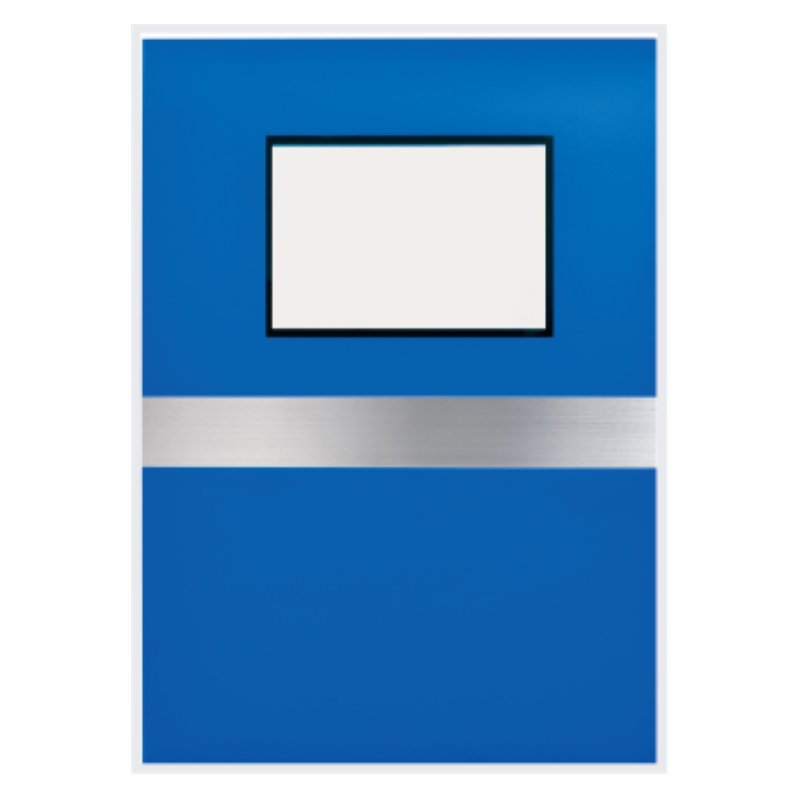

4.HPL Door
The HPL Cleanroom Door combines a seamless, non-porous high-pressure laminate surface with outstanding antibacterial, moisture-proof, and impact-resistant properties. It remains easy to clean, resists dust accumulation, and maintains its appearance over time, making it a premium choice for cleanrooms requiring the highest standards of hygiene and durability.
Single Door: 900mm*2100mm, Customized
Double Door: 1500mm*2100mm, 1800mm*2100mm
Color: Customized
Filler: Aluminum / Paper Honeycomb, Rock Wool
Surface: Electrostatic Alumina Profile
Window: 400mm*600mm
Hinge: Aluminum Cleaning Special Hinge
Door Leaf Material: HPL
Sealing Device: Door sealing strip and door bottom automatically pressing the sealing strip
5.Medical Door
The Medical Cleanroom Door combines a wall-integrated frame with a pull-down bottom seal to deliver outstanding airtightness, dust control, and hygienic performance. Whether constructed from stainless steel, HPL, or other cleanroom-grade materials, it provides a durable, easy-to-clean solution for critical spaces in healthcare, pharmaceuticals, microelectronics, and laboratory settings.
Single Door: 900mm*2100mm, Customized
Double Door: 1500mm*2100mm, 1800mm*2100mm
Color: Customized
Filler: Aluminum/Paper Honeycomb, Rock Wool
Surface: Electrostatic Alumina Profile
Window: 400mm*600mm
Hinge: Aluminum Cleaning Special Hinge
Door Leaf Material: Customized
Sealing Device: Door sealing strip and door bottom automatically pressing the sealing strip

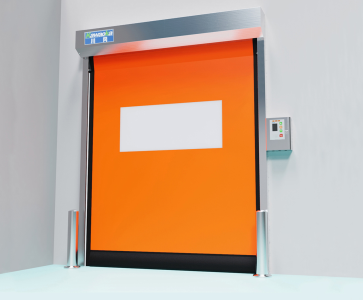

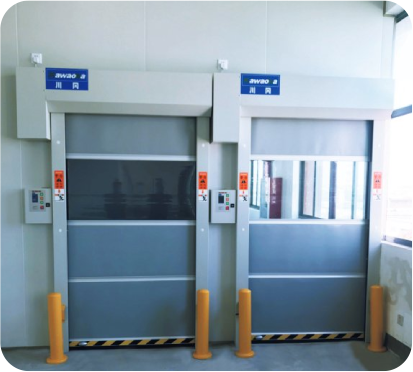

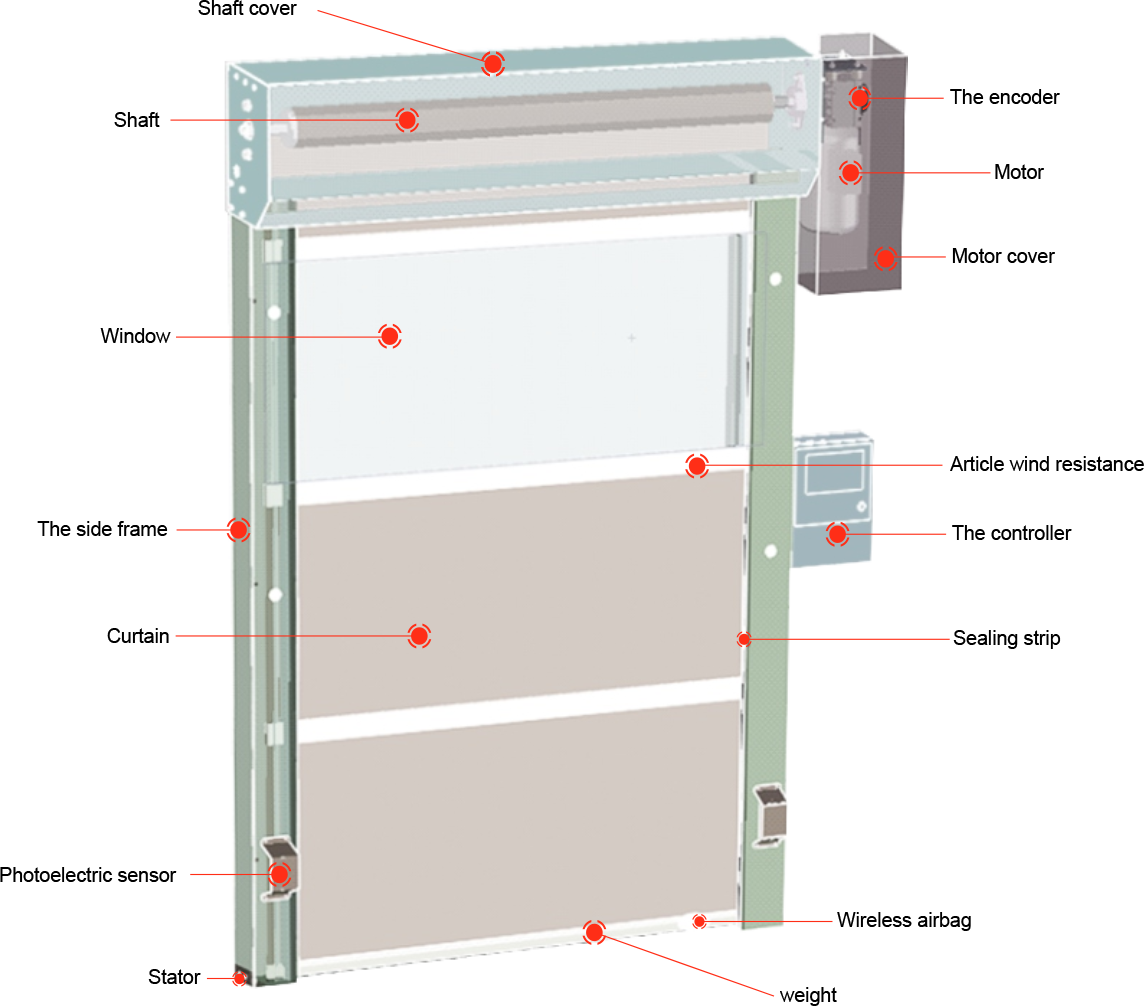

6.High-speed PVC Automatic Shutter Door
This door opens and closes quickly, quietly, and smoothly via an automatic induction system, allowing easy passage for workers and vehicles. Its specially treated industrial PVC curtain provides excellent protection against wind, dust, moisture, and insects, maintaining a clean environment while reducing air convection and energy loss—creating an efficient, temperature-controlled workspace.

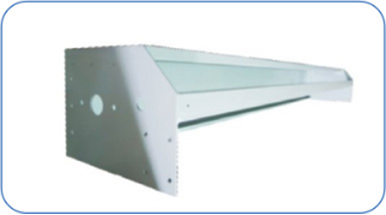

Main body:
High quality stainless steel plate or cold-rolled plates pray electrostatic epoxy resin.

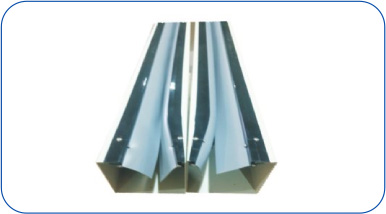

Chute:
High quality stainless steel plate or cold-rolled plates pray electrostatic epoxy resin.

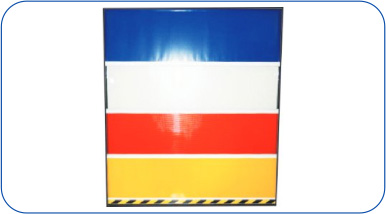

Curtain fabric: (window optional)
High density industrial base cloth, 0.8 mm thick. Yellow,blue, orange or all transparent color can be selected, itscurtain cloth unique fine pinhole fiber structure, withpetter air permeability

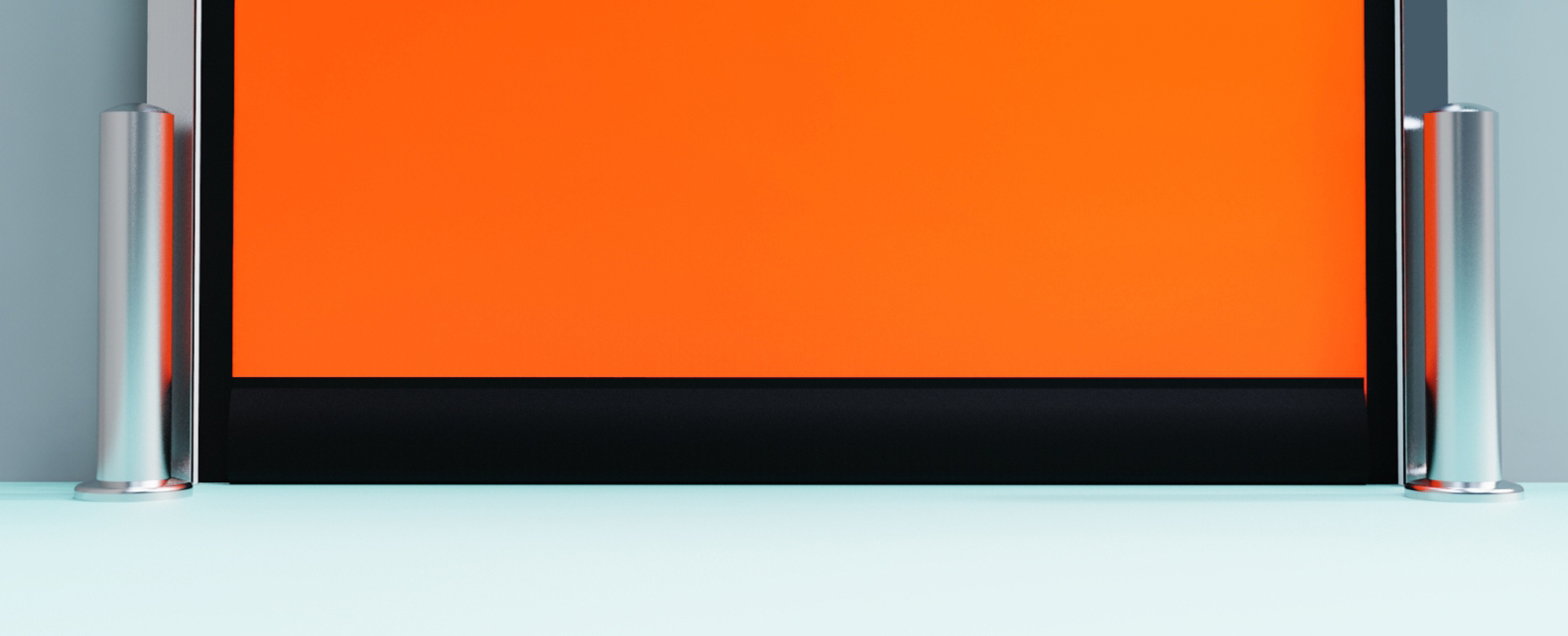

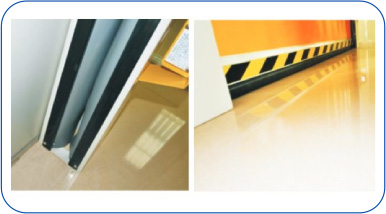

Sealing performance:

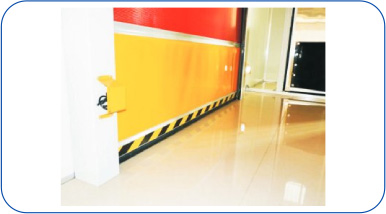

The bottom has elastic rubber for a tight seal on uneven floors, with internal cushioning for durability. Both doorposts feature eco-friendly wear-resistant leather to reduce noise and improve sealing.
Safety performance:
Safety light can actively protect people and goodsthrough, wireless airbags can passively protect the safetyof people and goods.

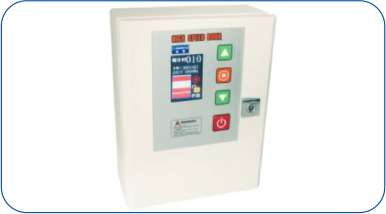

Control system:
The quick shutter door’s special frequency converter is an upgraded model that maintains the key functions and stability of the universal series.
| Item | Specification / Description |
| Advantages | Perfect sealing, high safety, reliable stability |
| Application places | Indoor |
| Role | Windproof, dustproof, moisture-proof, wet-proof, insect-proof, heat preservation, isolation |
| The largest size | W4500 mm × H4500 mm |
| Open the door speed | 0.8 m/s (Power can be adjusted) |
| The closing speed | 0.5 m/s (Power can be adjusted) |
| Drive mode | 220 V variable frequency drive |
| The framework | High quality stainless steel plate or cold-rolled plate spray electrostatic epoxy resin |
| Scroll | Drum diameter 114 mm, imported quality axis |
| Motor | Imported motor (motor brand optional) |
| Curtain | PVC material |
| Window | Import original transparent PVC, thickness of 1.5 mm |
| Protective measures | Anticollision column |
| Safety active protection | Safe light (multiple options) |
| Safety passive protection | Wireless airbag |
| Open the door way | Button to open the door, induction to open the door (multiple options) |
In short, they’re ideal anywhere that demands rapid, automated door operation while maintaining a clean, temperature-controlled space.

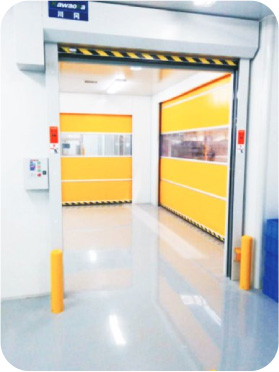

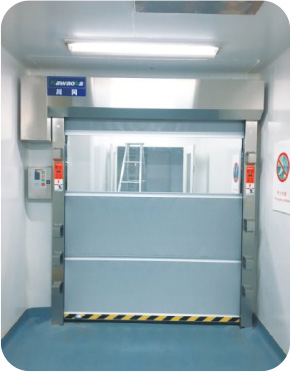

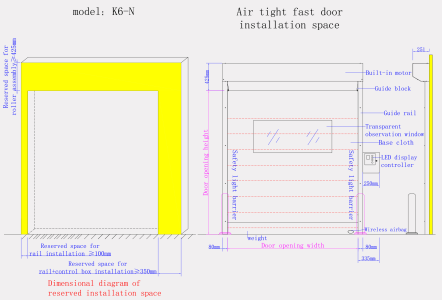

7.Air Tight Fast Door

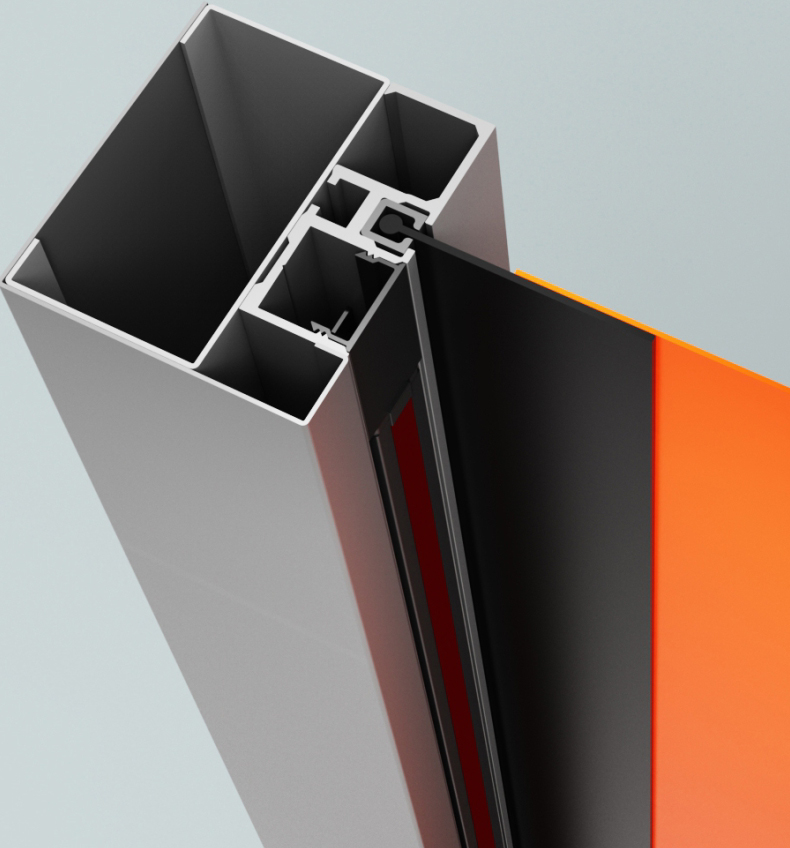

Designed for narrow logistics channels, this door features a built-in motor that saves installation space. The lightweight fabric curtain enables fast lifting, ensuring high-speed, safe, and reliable operation. Its excellent sealing performance protects against wind, moisture, dust, and insects, while improving work efficiency and reducing energy consumption.

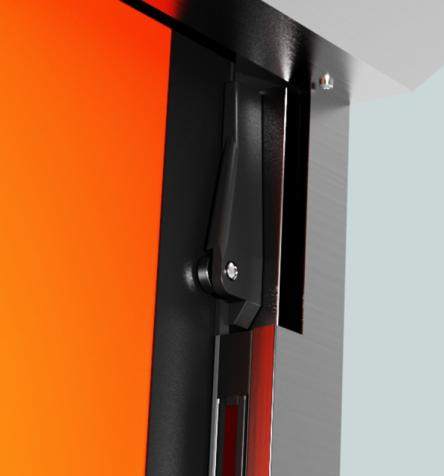

The door includes a self-resetting mechanism: if the curtain is accidentally hit, it automatically resets without manual intervention, minimizing downtime and maintenance costs.
Applications: Passageways, light industry, food, electronics, pharmaceuticals, warehousing, packaging, printing, and cosmetics.
Advantages | Perfect sealing, high safety, reliable stability |
Application places | Indoor |
Role | Windproof, dustproof, moisture-proof, wet-proof, insect-proof, heat preservation, isolation |
The largest size | W3000mm*H3000mm |
Open the door speed | 1.8m/s (Power can be adjusted) |
The closing speed | 1.2m/s (Power can be adjusted) |
Drive mode | 220V variable frequency drive |
The framework | Use of high-quality stainless steel plate |
Scroll | Roller diameter 160mm |
Motor | Dedicated built-in motor (750W) |
Curtain | PVC material, use high-density industrial base cloth (Multiple colors optional) |
Window | Import original transparent PVC, thickness of 1.2mm-2.0mm |
Protective measures | Anticollision column |
Safety active protection | Safety light, Safety light barrier (choose either of the two) |
Safety passive protection | Wireless air bag |
Open the door way | Button to open the door, induction to open the door (multiple options available) |
Certificate | Medical air clean room air cleanliness level 3 |
